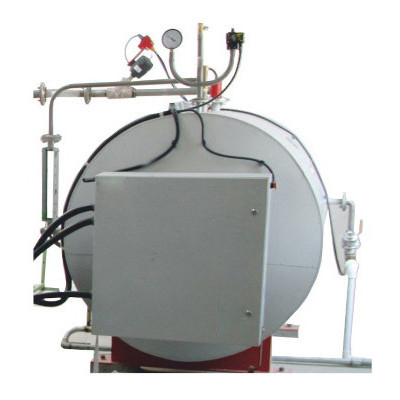

Double Vessel Cylindrical Model


Double Vessel Cylindrical Model

Advantages
  •         Optimum Moisture Gain.
  •         Increase in single yarn elongation and strength.
  •         Significant reduction in Fly Liberation.
  •         Better Hairiness value.
  •         Free from electrostatic charges
  •         Reduced snarling
  •         Improved weaving and knitting performance
  •         Improved Fabric softness and better performance in cloth formation
  •         Good size pick up in sizing

Features
  •         HIGHER VACUUM upto 95% Vacuum in the conditioning chamber ensures uniform penetration and maximum moisture gain.
  •         LOW TEMPERATURE CONDITIONING From 46° C.
  •         CONTAMINATION FREE YARN due to clean conditioning chamber without water bath.
  •         HEAT SETTING possible up to 120° C.
  •         SYSTEM SAFETY incorporated as per the International Standards using Pressure Switches, Pressure Gauges, Pressure relief valves, Water level indicators and Protection switches.
  •         POWER FAILURE bypass Programme.





















Technical Data
DESCRIPTIONWIN N2100WIN N1800WIN N1500WIN N1200WIN N900WIN N600WIN N400
Capacity per batch* KgsUpto 2100Upto 1800Upto 1500Upto 1200Upto 900Upto 600Upto 400
Production per Day(upto)**48 MT42 MT36 MT30 MT24 MT16 MT10 MT
Main Vessel Length in mm7160636055604760396031602800
Main Vessel Diameter in mm2000200020002000200020001800
Material LoadingFully AutomaticFully AutomaticFully AutomaticFully AutomaticFully AutomaticFully AutomaticFully Automatic / Manual
Energy SaverOptionalOptionalOptionalOptionalOptionalOptionalOptional
Energy FormElectrical / Steam / DualElectrical / Steam / DualElectrical / Steam / DualElectrical / Steam / DualElectrical / Steam / DualElectrical / Steam / DualElectrical / Steam / Dual
Operating Temperature RangeUpto l20°cUpto l20°cUpto l20°cUpto l20°cUpto l20°cUpto l20°cUpto l20°c
Operating Pressure Range+1bar to -1bar+1bar to -1bar+1bar to -1bar+1bar to -1bar+1bar to -1bar+1bar to -1bar+1bar to -1bar
Power Consumption(KWH/Batch)*31-3628-3025-2720-2215-1810-126-9
Control PanelPLC with touch screenPLC with touch screenPLC with touch screenPLC with touch screenPLC with touch screenPLC with touch screenPLC with touch screen
Vacuum Pump (kW)15KW11/15KW11 KW11 KW11 KW7.5 KW7.5 KW
Heater Capacity (kW)144/180144126/144108/12690/10854/7236/72
No of Trolleys7654322
Space Requirement (L x B x H) in Meter15.2 x 4.5 x 313.7 x 4.5 x 312.Ix 4.5 x 310.5 x 4.5 x 39 x 4.5x 37.5 x 4.5 x 37.5 x 4 x 3
Total Load (kW)161/197157/161139/187121/139103/12163/8145/81
