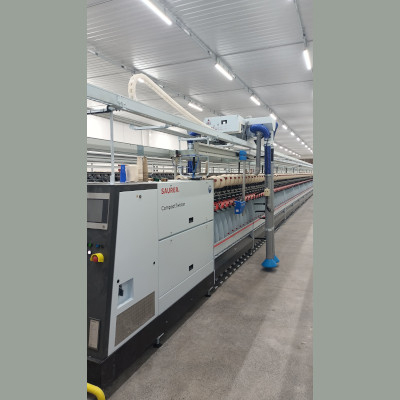

Chain Link Model


Chain Link Model

Technical Specifications

  •     Suitable for straight line path or single Machine
  •     Power supply through four separate Single core cable and Specially designed Chain link arrangement
  •     Drive Mechanism by Geared Motors
  •     Latest Generation PLC (Programming Logic Controller) for effective control operation of the unit.
  •     Push Button on both sides for  of the unit.

Optional


  •     Obstacle Sensor arrangement Optical (or) Mechanical
  •     Automatic Parking Arrangement
  •     Automatic Waste Collecting System
  •     Link Coner Arrangement
  •     RoCos Compact/Elite Compact Nozze Arrangement
  •     Wharve Cleaning Arrangement
  •     Bobbin Transport System Compatibility
  •     Hanging type suitble for Speed frame with Auto-Doffer & BTS, V creel warping machines


Specification
Model NameMTC 300MTC 400
SystemChain LinkChain Link
Fan Motor3 HP, 415v, 3Ø 50Hz, 2 Pole4 HP, 415v, 3Ø 50Hz, 2 Pole
Drive motor150 Watts, 3Ø 415 Volts150 Watts, 3Ø 415 Volts
Blowing Air Volume2600 m3/h2900 m3/h
Suction Capacity (Total Pressure)2400Pa2700Pa
No. of Blowing pipes x size2 x 125 mm Dia2 x 125 mm Dia
No. of Suction pipes x size4 x 100 mm Dia4 x 100 mm Dia
Travelling speed12/16/20 m/min12/16/20 m/min
Filter Area0.14 m20.14 m2
Function ControlPLCPLC
Travelling PathStraight lineStraight line

























* Will vary according to the type of frames
