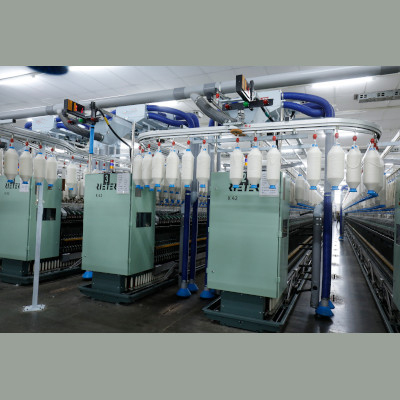

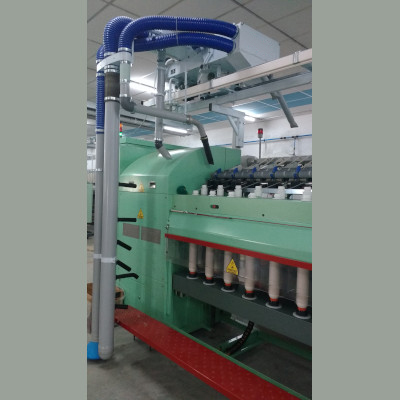

Power Duct Bus Bar Model

Technical Specification

Suitable for Single or group machines in straight line/Curved/ Zigzag/Rotational Path
Power supply through copper bus bar in a completely enclosed PVC power Duct arrangement
Drive Mechanism by Geared Motors
Aero Dynamic design for the best performance
Latest Generation PLC (Programming Logic Controller) for effective control operation of the unit
Push Button on both sides of the Unit.

Optional

Obstacle Sensor arrangement â€“ Optical (or) Mechanical
Automatic Parking Arrangement
Automatic waste collecting system
Link Corner Arrangement
RoCos Compact/ Elite Compact Nozzle Arrangement
Wharve cleaning arrangement
Bobbin Transport System compatibility
Hanging type suitable for speed frame with auto- doffer & BTS, V creel warping machines.

Specification

Model Name	MTP 300	MTP 400
System	Power Duct	Power Duct
Fan Motor	3 HP, 415v, 3Ã˜ 50Hz, 2 Pole	4 HP, 415v, 3Ã˜ 50Hz, 2 Pole
Drive motor	150 Watts, 3Ã˜ 415 Volts	150 Watts, 3Ã˜ 415 Volts
Blowing Air Volume	2600 m3/h	2900 m3/h
Suction Capacity (Total Pressure)	2400Pa	2700Pa
No. of Blowing pipes x size	2 x 125 mm Dia	2 x 125 mm Dia
No. of Suction pipes x size	4 x 100 mm Dia	4 x 100 mm Dia
Travelling speed	12/16/20 m/min	12/16/20 m/min
Filter Area	0.14 m2	0.14 m2
Function Control	PLC	PLC
Travelling Path	Straight line & Curved	Straight line & Curved

* Will vary according to the type of frames
